Leírás
Power
| Input | USB TYPE C, 25W above, Up to 20V 1A, 20W up with DC Adapter, PoE+(802.3at), CAT5e above |
| Consumption | ~10W Max (Without DC Out) |
| Output | 12V 1A DC Max with current limit |
Video
| Video Encoder | H.264 HP/MP/BP, H.265 MP |
| Resolution | 4K2160p25/30, 1080p25/30/50/60, |
| Encoder/Decoder | 1080i50/60, 720p50/60, For both video Input & Output |
| Loop through* | Up to 4K60, 1080p120Hz, HDR10 & Dolby |
| HDCP | 1.4/2.2/2.3 |
| Frame Rate | 24/25/30fps, 50/60fps for 1080/720p |
| Codec | H.264/H.265 |
| Rate Control | CBR/VBR |
| Live Preview | Web, HDMI loop through and output |
| *Resolution above 4K30 will be automatically down scaled for streaming | – |
Network
| LAN | 100/1000Mbps Gigabit |
| WIFI | 802.11a/b/g/n/ac, Dual Band |
| Bluetooth | V5.0 |
| WEB | http, https |
Streaming
| Streaming In | RTSP/RTMP(s)/SRT |
| Streaming Decoder | RTMP(s)/SRT/RTP/UDP/RTSP/TCP/HTTP(s)， *SRT caller only |
| Bit Rate | Max. 50mbits/s, adjustable |
| NDI® Encoder | NDI® | HX3/HX2/HX |
| NDI® Decoder | NDI® | HX3/HX2/HX |
| NDI Audio Direct | Audio over NDI |
| Recorder | mp4, mov, ts |
| Rotation | 0/90/180/270n°, native vertical streaming |
| Main Video Stream | Up to 4K30 |
| Secondary Stream | Up to 720p |
Audio
| Sampling | 32, 44.1, 48KHz |
| Encoder | AAC, MP3, 16bit |
| Bitrate | 32-192kbps |
| Channel | Dual, AGC |
| Input | 0.7VRMS， 20Kohm |
| Output | 16ohm, 30mW |

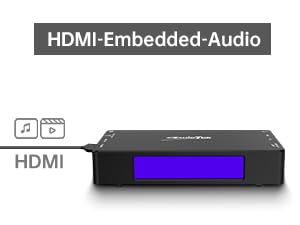

| Source | HDMI Embedded, Line In |
Input/Output
| HDMI In | 1.4b/2.0b, RGB/YCbCr 444/422/420 |
| HDMI Loop out | 2.0, up 4K60 |
| HDMI Out | 1.4b, up to 4K30 |
| NDI | NDI® | HX3/HX2/HX (NDI 5.5 upgradeable) |
Configuration
| Display | Dot Matrix, COG |
| Setting | Mobile Phone, Pad, PC, RESTFUL |
| OSD | Text, Logo Caption, Time Stamp, WYSIWYG |
PTZ
| Interface | RS232/485/422 via USB dongle* |
| Protocol | Pelco D/P, VISCA |
Tally
| Tally | Auto/Manual |
Software
| Firmware | Upgradeable, Linux OS |

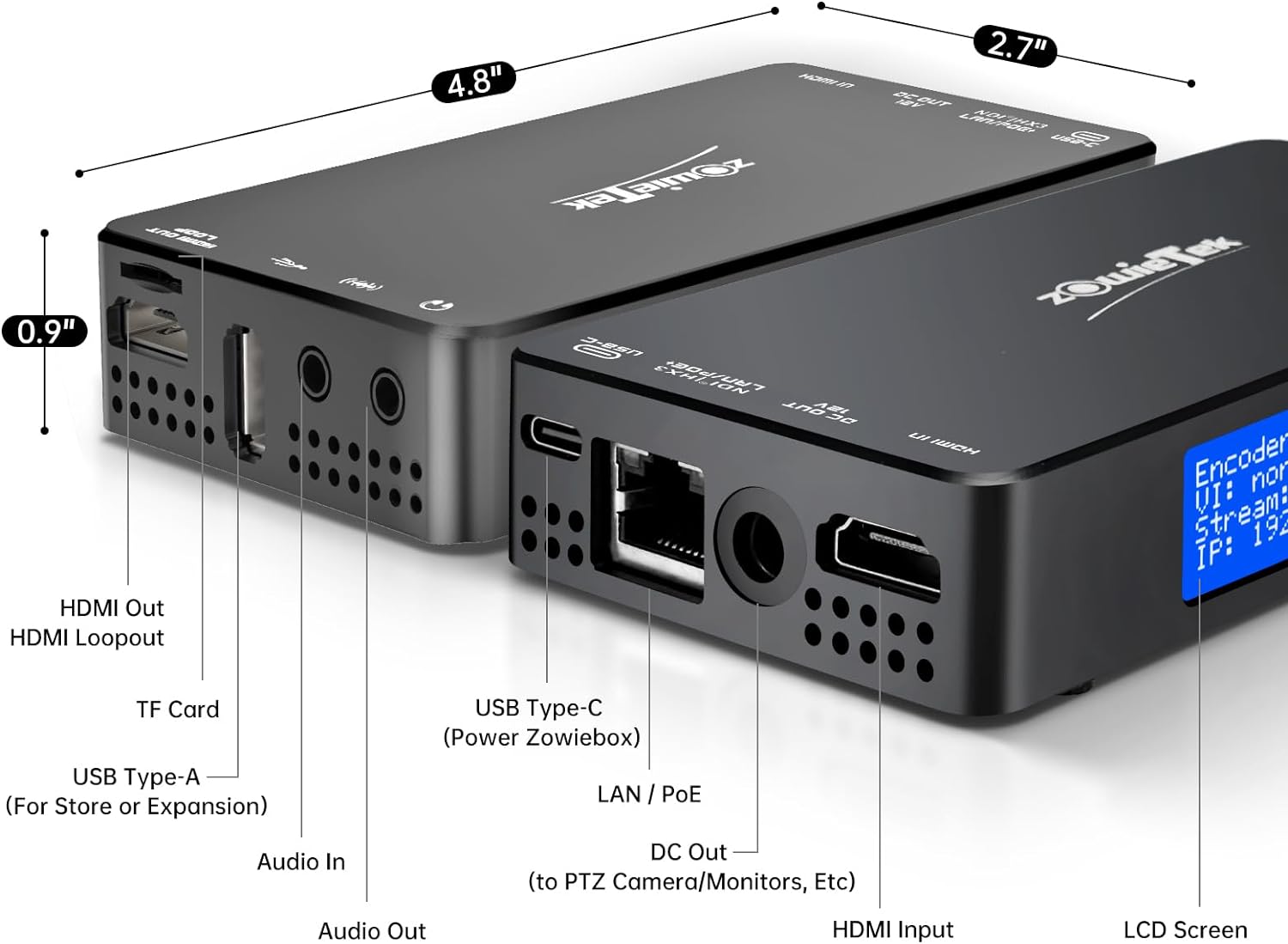

Interface
| HDMI Input | 1 x TYPE A, Receptacle, 1.4b |
| HDMI Loop Out | 1 x TYPE A, Receptacle(Mux), 2.0b |
| HDMI Output | 1 x TYPE A, Receptacle(Mux), 1.4b |
| Audio In | 1 x 3.5mm TRS Jack |
| Audio Out | 1 x 3.5mm TRS Jack |
| Network | 1 x RJ45, Gigabit, PoE |
| USB | 1 x USB, TYPE A |
| Visible | 1 x RGB LED Panel, 1 x LCD |
Storage
| Internal | 1 x MicroSD/TF, USB |
| Network | NAS |
| Disk Format | FAT32 up to 2T, exFAT |
| *All storage media not included | – |
Physical
| Size | 123 x 68 x 22mm(4.8″ x 2.7″ x 0.9″) |
| Weight | 166g(5.9oz) Black aluminum |
| Operating | 0°C to 45°C(32°F to 113°F) |
| Storage | -20°C to 60°C(-4°F to 140°F) |
| Tripod | 1/4” – 20UNC |
Certification
| CE, FCC | EN IEC 61000-3-2, EN 61000-3-3 |
specifikáció
Bemenet: USB-C; PoE+ (802.3at), CAT5e fent. Kimenet: 12V 1A DC max
Videókódolási formátum H.265 MP, H.264 HP/MP/BP
Felbontás 4K2160p24/25/30, 1080p24/25/30/50/60, 1080i50/60, 720p50/60, videó bemenethez és kimenethez
Képkockasebesség 24/25/30 fps, 50/60 fps 1080/720p esetén
Élő előnézet webes, HDMI átvezetés és kimenet
Streaming RTSP/RTMP(ek)/SRT-ben
RTMP/SRT/RTP/UDP/RTSP adatfolyam
Bitráta Max. 50 MBit/s, állítható
NDI NDI|HX3/HX2/HX. Megjegyzés: nem a teljes NDI és NDI|HB. A teljes NDI túl sok hálózati sávszélesség-erőforrást fogyaszt.
dekódolási formátum NDI|HX3/SRT/RTMP(s)/RTSP
Felvevő mp4, mov, ts
Audiobemenet: HDMI beágyazott vagy vonali bemenet a 3,5 mm-es TRS jack csatlakozón keresztül. Kimenet: 1 x 3,5 mm-es TRS jack
Match Automatic/Manual
OSD szöveg, logó felirat, időbélyeg

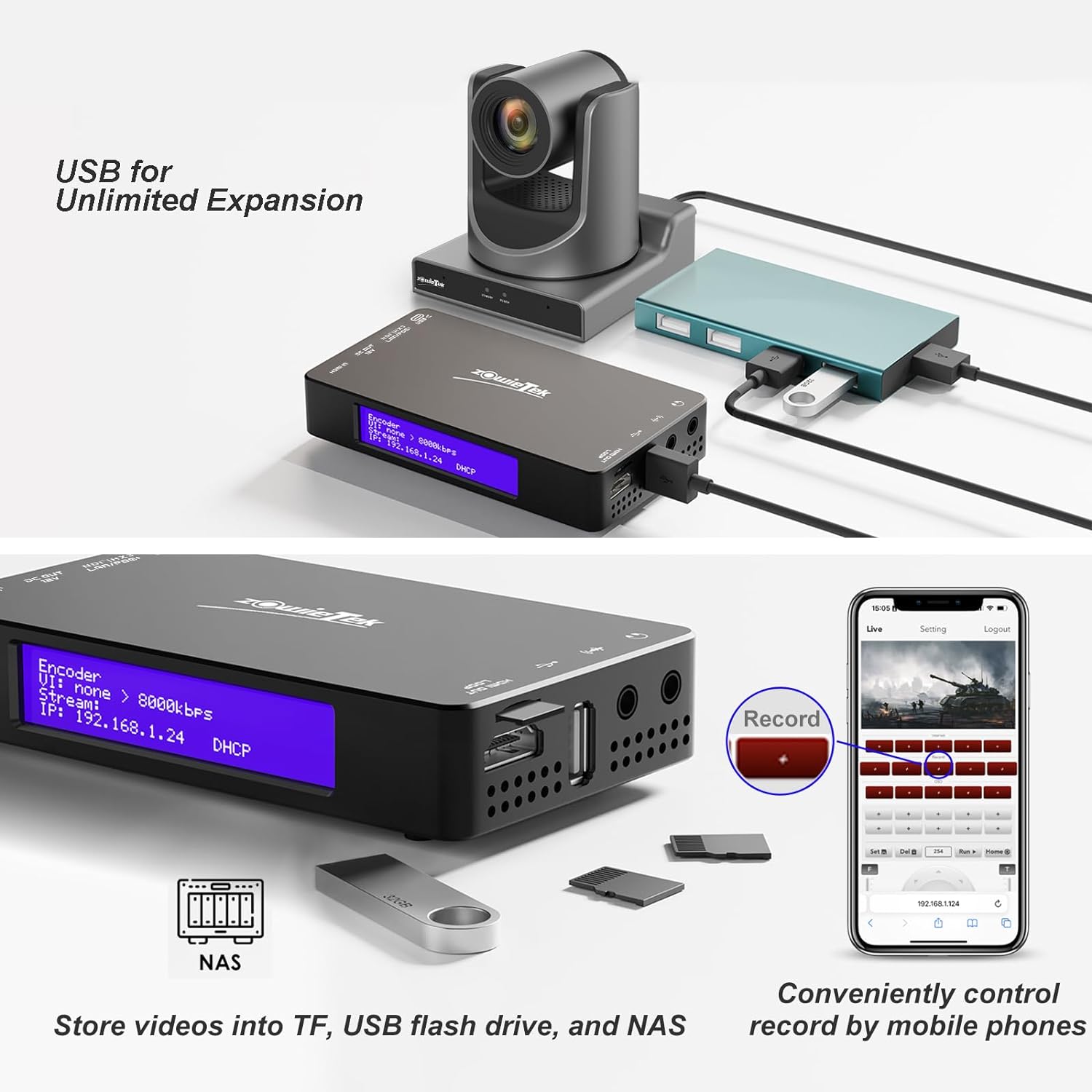

Tároló TF kártya, U disk, NAS
Méret: 123 x 68 x 22 mm (4,8″ x 2,7″ x 0,9″); 166 g (5,9 uncia) fekete alumínium
