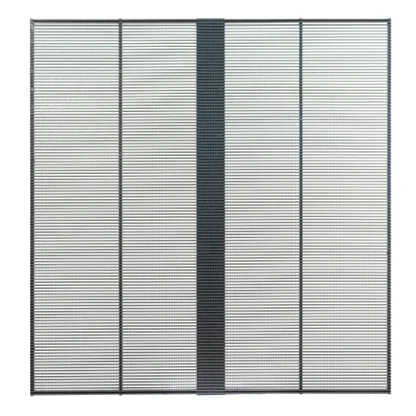

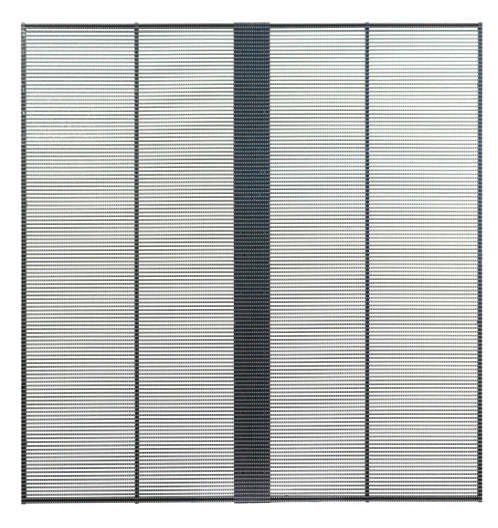

Indoor Transparent Led Screen | Glass Wall Screen
O-CLEAR Series:
The O-CLEAR Series is ideal for a variety of applications, such as shopping malls, mobile phone shops, retail chain stores, window glass LED displays, and Auto 4S shops. This series is a great option if you need to showcase LED advertising while allowing light to come through the building.
Key Features:
1. Ultra-thin and lightweight: weighing less than 11kg/m², and can be joined together in any configuration.
2. High transparency and brightness: with more than 4500-5000 nits and a hidden wire design.
3. Saves on labor costs: the power box can be quickly opened and closed with one hand.
4. Equipped with quick plug-in parts, convenient for events.
5. Customized cabinet sizes to meet different project requirements.
6. Edge protection design prevents LED collisions, which results in a longer lifespan.
Multiple Specifications to Adapt
Standard sizes? We’ve got those. Need a perfect fit for your unique project?
Our bespoke solutions are precision-engineered to your specs—no compromise on performance.
Modular Design
Our high-precision PCB cutting process ensures each layer’s width is precisely tailored to fit an LED bead,
while maintaining optimal clearance for seamless light transmission.
Light and Reliable Aluminum Architecture
Engineered with a precision high-strength frame that delivers sleek,
minimalist aesthetics without compromising structural integrity or impact resistance.
Easy Maintain & Installation
All critical components (modules, power supply, IC) are individually replaceable,
paired with a quick-release cabinet design — enabling effortless maintenance, to reduce life cycle maintenance costs.
HD-Definition FULL COLOR
It offers high-brightness / high-transparency / high refresh rate and resolution that ensures smooth, detailed visuals,
with its vivid chromatic performance immersive experience for the audience.

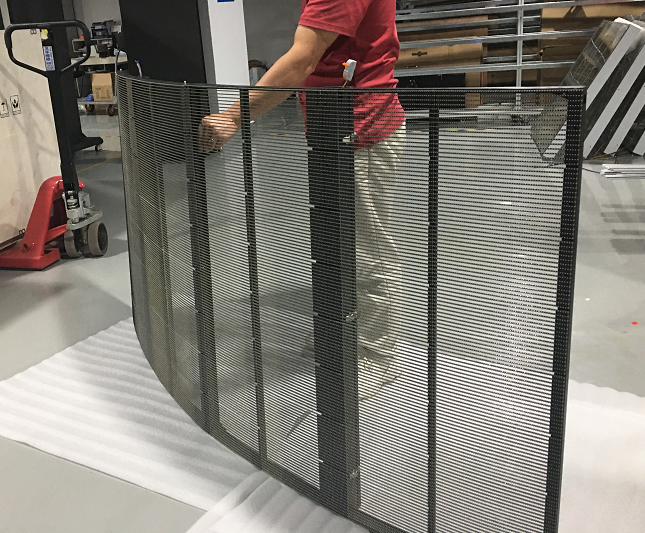

Flexible Frame Design
Flexible curved installation capabilities, adapting seamlessly to on-site spatial requirements
while maintaining optimal structural integrity for enhanced design possibilities.
| HD Transparent Led Display | ||||
| ITEM | P2.6 | P2.97 | P3.47 | P3.91 |
| LED lamp bead model | SMD1415 | SMD1415 | SMD1415 | SMD1415 |
| Pixel Pitch | 2.6-2.6mm | 2.97-2.97mm | 3.47-3.47mm | 3.91-3.91mm |
| Module Resolution(W*H) | 192*24 | 168*21 | 144*24 | 128*16 |
| Module Size(W*H) | 500*62.5mm | 500*62.5mm | 500*83.28mm | 500*62.5mm |
| Module Fixed Way | Front Access (Screw) | |||
| Cabinet Resolution(W*H) | 192*192/192*384 | 336*168/336*336 | 288*216/288*288 | 256*128/256*256 |
| Cabinet Size(W*H) | 500*500/500*1000 | 1000*500/1000*1000 | 1000*750/1000*1000 | 1000*500/1000*1000 |
| Module Arrangement(W*H) | 1*8/1*16 | 2*8/2*16 | 2*9/2*12 | 2*8/2*16 |
| Density of Pixel (dots/m2) | 147456 | 112896 | 82944 | 65536 |
| Transparency rate | 40% | 42% | 45% | 50% |
| Cabinet Weight(kg/SQM) | 12.5kg | 12kg | 11kg | 10kg |
| Refresh rate | 3840Hz | 3840Hz | 2800Hz | 3840Hz |
| Scan Method | 24 Scan | 21 Scan | 16 Scan | 16 Scan |
| Cabinet Material | Aluminum | |||
| Brightness | 5000 | |||
| Viewing angle | 140°/140° | |||
| Gray scale | 14bit-16bit | |||
| Signal Input | Universal | |||
| Operating Voltage | AC: 110V~240V、 50~60Hz | |||
| Maximum Power(W/m2) | 800 | |||
| Average power(W/m2) | 240 | |||
| High Transparent Led Display | ||||
| ITEM | P2.6-5.9 | P2.8-5.6 | P3.9-7.81 | P10.4 |
| LED lamp bead model | SMD1921 | SMD1921 | SMD1921 | SMD2727 |
| Pixel Pitch | 2.6-5.95mm | 2.8-5.6mm | 3.9-7.81mm | 10.4-10.4mm |
| Module Resolution(W*H) | 192*12 | 176*22 | 128*16 | 48*12 |
| Module Size(W*H) | 500*71.4mm | 500*125mm | 500*125mm | 500*125mm |
| Module Fixed Way | Front Access (Screw) | |||
| Cabinet Resolution(W*H) | 384*84/168 | 352*88/176 | 256*64/128 | 96*48/96 |
| Cabinet Size(W*H) | 1000*500/1000 | 1000*500/1000 | 1000*500/1000 | 1000*500/1000 |
| Module Arrangement(W*H) | 2*7/2*14 | 2*4/2*8 | 2*4/2*8 | 2*4/2*8 |
| Density of Pixel (dots/m²) | 64512 | 61952 | 32768 | 9216 |
| Transparency rate | 55% | 60% | 75% | 80% |
| Cabinet Weight(kg/SQM) | 10kg | 10kg | 10kg | 10kg |
| Refresh rate | 1920-3840Hz | 3840Hz | 2800Hz | 3840Hz |
| Scan Method | 12 Scan | 11 Scan | 8 Scan | 3 Scan |
| Cabinet Material | Aluminum | |||
| Brightness | 5000 | |||
| Viewing angle | 140°/140° | |||
| Gray scale | 14bit | |||
| Signal Input | Universal | |||
| Operating Voltage | AC: 110V~240V、 50~60Hz | |||
| Maximum Power(W/m2) | 800 | |||
| Average power(W/m2) | 240 | |||
