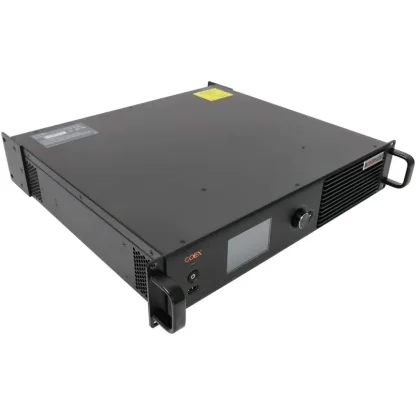

Novastar MX30 video wall control server Features:

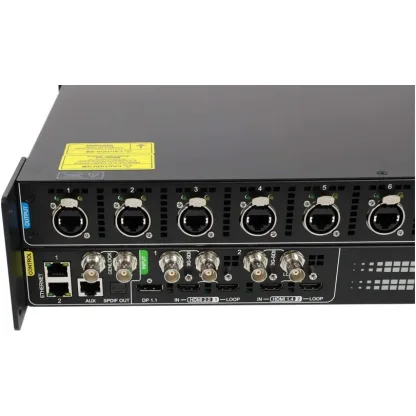

input output:

• Various video input interfaces

− 1×HDMI 2.0 (with loop output)
− 1×HDMI 1.4 (with loop output)
− 1×DP 1.1
− 2×3G-SDI (with loop output)

• 10-bit/8-bit video source input

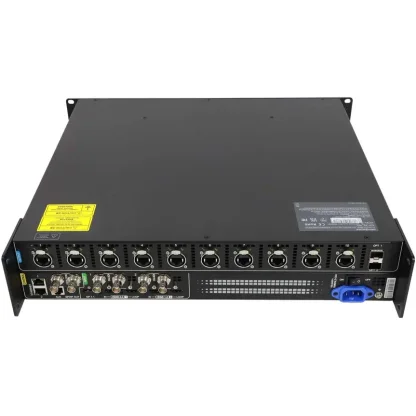

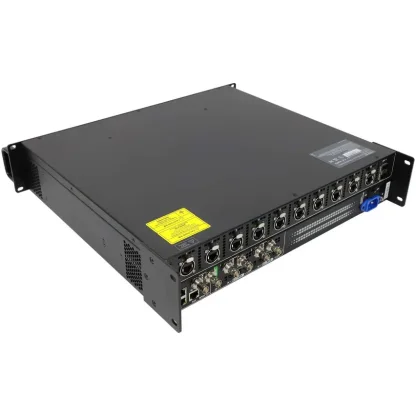

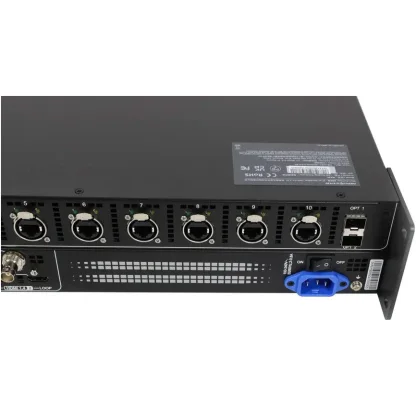

• 3 output interfaces

− 10×Gigabit network port, 6.5 million pixels maximum load
− 2×10G optical ports
− 1×SPDIF digital audio interface

• 3 control interfaces

− 1×Genlock synchronization signal input (with loop output)
− 2×Ethernet Ethernet control network port
− 1×AUX auxiliary interface

Special features:

• 3 separate layers

Supports adding up to 3 layers and setting them by Z order.

• Screen zoom

Supports 4 screen scaling modes including custom, point-to-point,
The curtain tiles and covers the screen.

• color calibration

Supports 12 standard colors from black and white and the three primary colors RGB
Make precise adjustments to hue, saturation, and brightness.

• HDR

− Supports HDR10, compatible with SMPTE ST 2084 / SMPTE standards
ST 2086 standard.
− Support HLG.

• Full grayscale correction

Nova Nebula with high-precision correction system and C3200 scientific-grade phase
The machine generates its own correction coefficient for each gray level to ensure
The uniformity of all levels of grayscale significantly improves the quality of the display.

• Delay

− Supports low latency and can achieve low latency without reducing the load. independent
In master control mode, the controller side has a frame delay of 0 (less than
1ms), in video controller mode, 1 frame delay on the controller side
Late.
− Supports additional frame delay, the controller can add 0-2 delays Late.

• No rectangle frame limit

When creating a special-shaped screen, there is no rectangle frame boundary. Leaving it blank does not count as loading. The network
The port load is calculated as the superimposed sum of the pixels of all screen cabinets.

• Frame rate adaptive

Adapt to various video input frame rates, including decimal frame rates. support
Support for user-definable frame rates and fine frame rates in 0.01 Hz steps
to set.

• Two device mode

It supports two modes: video control and independent master control.
− In independent master mode, one frame delay can be reduced.
− In video control mode, you can use functions such as multi-layer and zoom.

• display system monitoring

Supports equipment status monitoring and display status monitoring, and automatically
Report error and alarm information.
