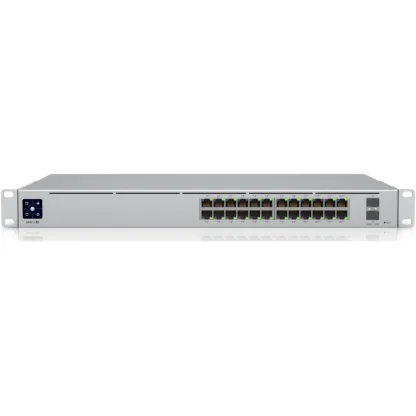

Ubiquiti USW-PRO-24-POE Networks UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet

images - TZSVTAV-LED Kijelző - AV Bérbeadás - Shop and Service

Ubiquiti USW-PRO-24-POE Networks UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet

820 € +Áfa

(16) GbE PoE+, (8) GbE PoE++ ports

(2) 10G SFP+ ports

400W total PoE availability

DC power supply ready for backup

Level 3 switching

Near silent cooling

Audio and Video Environments

When configuring Pro AV, select the option that matches your setup and the port(s) where audio and video devices are connected. Ports are configured individually for Pro AV and the options do not need to match on the same switch. The following options are available:

Dante Audio – Matches Audinate Dante audio, PTP and control traffic.
Q-SYS Audio and Video – Matches Q-SYS audio, video, PTP and control traffic.
Q-SYS Video with Dante Audio – Matches Q-SYS video with Audinate Dante audio, PTP and control traffic.
Shure Audio – Matches Shure audio, PTP and control traffic.
Crestron Audio and Video – Matches Crestron audio, PTP, video and control traffic.
AES67 Audio – Matches AES67 audio, PTP and control traffic.
SDVoE with AES67 Audio – Matches SDVoE with AES67 audio, PTP and control traffic.
SDVoE with Dante Audio – Matches SDVoE with Audinate Dante audio, PTP and control traffic.
NDI with AES67 Audio – Matches NDI with AES67 audio, PTP and control traffic.
NDI with Dante Audio – Matches NDI with Audinate Dante audio, PTP and control traffic.

Mechanical
Dimensions	442 x 285 x 44 mm (17.4 x 11.2 x 1.7″)
Crowd	Without fasteners: 4.3 kg (9.5 lbs) With fasteners: 4.4 kg (9.7 lbs)
Case material	SGCC steel
Hardware
Control panel	Ethernet In-Band
Network connection	(24) GbE RJ45 ports (2) 1/10G SFP+ ports
PoE connection	(16) PoE/PoE+ (Pins 1, 2+; 3, 6-) (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 😎
Full non-blocking power	44Gbps
Switching capacity	88Gbps
Transfer rate	65.472 Mpps
Power supply method	(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A
Power supply	AC/DC, internal, 450W
Supported voltage range	100—240V AC
Max. power consumption	50W (excluding PoE output)
Full PoE availability	400W
Max. PoE power per port by PSE	PoE+: 32W PoE++: 64W
Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCD display	(1) 1.3″ touchscreen
Button	Factory reset
Shock and vibration resistance	ETSI300-019-1.4 Standard
Ambient operating temperature	-5 to 40°C (23 to 104°F)
Ambient operating humidity	10 to 90% non-condensing
Certificates	CE, FCC, IC
Switching functions
2 layers of functions	IGMP snooping STP/RSTP with priorities and port-level blocking Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast/broadcast rate limiting MAC address blocking Current limitation 802.1X control Jumbo frames Own looped protection DHCP snooping/guarding Output speed limit LLDP-MED Port with restricted MAC address Device isolation with ACLs
3 layers of functions	DHCP for locally managed networks DHCP relay Inter-VLAN routing between networks within the switch Static routing between local networks Network isolation with ACLs
LEDs
System	Status
Ethernet	PoE Speed/link/activity
SFP+	Link/activity
RPS	Status
Application requirements
UniFi network	Version 5.10.5 and later
