Description

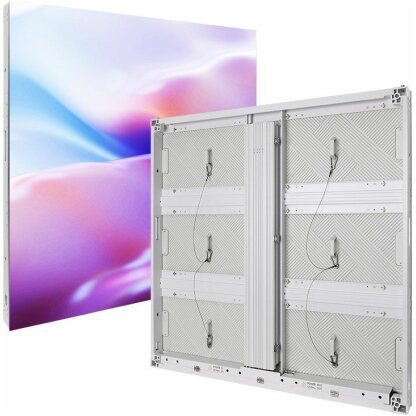

EA960F3 960×960 Outdoor LED Billboard
EA960F3 series is a new generation of fixed outdoor LED billboard, with aluminum cabinet, size of 960*960*77mm, equipped with high protection panel design, protection level up to IP65. Support front and back dual business, easy maintenance. Ultra-low heat and power consumption, providing excellent visual experience.
Front and Rear Service
The dual service mode of front and back design saves your maintenance costs, convenient installation and saves space. The LED panel and power box can be assembled and disassembled easily and quickly.
High Protection LED Module
EA960F3 series LED display module adopts a fully sealed design of die-cast aluminum to protect its internal components. Its hard connection structure provides ultra-high stability and safety, while facilitating module disassembly and maintenance.
Customized New LED Display Solutions for Yo
Safety Harness Design
Each LED module is equipped with a safety belt to effectively prevent the module from falling and causing injury.
Simple Design
No cable design, the power cord and data cable are hidden at the bottom of the panel. LED module hard connection design, high stability.
Energy Saving
LED modules use a unique PCB design to significantly reduce power consumption, EA960F3 LED screen is more energy-efficient than traditional outdoor screens, helping you save a lot of electricity bills.
IP65 Waterproof
EA960F3 outdoor LED billboard has a protection level of up to IP65, and the fully sealed cabinet provides excellent weatherproof performance.
90° Arc Cabinet
EA960F3 series can be customized with a 90° curved cabinet, which supports arc corner splicing and realizes naked-eye 3D advertising screen.
Ultimate Display Effect
With its high brightness and high refresh rate, the EA960F3 LED display provides users with more realistic and vivid visual effects in commercial display applications.
| Pixel Pitch (mm) | P4.44 | P5.71 | P6.67 | P8 | P10 |
|---|---|---|---|---|---|
| Model | EA960F3-P4.44 | EA960F3-P5.71 | EA960F3-P6.67 | EA960F3-P8 | EA960F3-P10 |
| Pixel Configuration | SMD 1921 | SMD 2727 | SMD 2727 | SMD 2727 | SMD 2727 |
| Density (Pixels/㎡) | 50,625 | 30,625 | 22500 | 15625 | 10000 |
| Module Resolution (Pixel) | 108×72 | 84 x 56 | 72x48 | 60x40 | 48x32 |
| Module Size (mm) | 480*320 | 480*320 | 480*320 | 480*320 | 480*320 |
| Driving Mode (Duty) | 1/9 scan | 1/7 scan | 1/6 scan | 1/4 scan | 1/2 scan |
| Cabinet Size (mm) | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
| Cabinet Weight (KG) | 25 | 25 | 25 | 25 | 25 |
| Brightness (CD/㎡) | 6000 | 6500 | 6500 | 6500 | 6500 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60H | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 650 | 650 | 680 | 650 | 650 |
| Avg. Power Consumption (W/㎡) | 220 | 220 | 240 | 220 | 220 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (℃) | -20～+50 | -20～+50 | -20～+50 | -20～+50 | -20～+50 |
| Lifetime (Hours) | 100000 | 100000 | 100000 | 100000 | 100000 |
| Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
EA960F3 640x960mm Outdoor Front Service LED Display Parameter
| Pixel Pitch (mm) | P5.71 | P6.67 | P8 | P10 |
|---|---|---|---|---|
| Model | EA960F3-640-P5.71 | EA960F3-640-P6.67 | EA960F3-640-P8 | EA960F3-640-P10 |
| Pixel Configuration | SMD 2727 | SMD 2727 | SMD 2727 | SMD 2727 |
| Density (Pixels/㎡) | 30,625 | 22500 | 15625 | 10000 |
| Module Resolution (Pixel) | 7×56 | 6×48 | 5×40 | 4×32 |
| Module Size (mm) | 40*320 | 40*320 | 40*320 | 40*320 |
| Driving Mode (Duty) | 1/7 scan | 1/6 scan | 1/4 scan | 1/2 scan |
| Cabinet Size (mm) | 640×960 | 640×960 | 640×960 | 640×960 |
| Cabinet Weight (KG) | 27.5 | 27.5 | 27.5 | 27.5 |
| Brightness (CD/㎡) | 6500 | 6500 | 6500 | 6500 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 650 | 680 | 650 | 650 |
| Avg. Power Consumption (W/㎡) | 220 | 240 | 220 | 220 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (℃) | -20～+50 | -20～+50 | -20～+50 | -20～+50 |
| Lifetime (Hours) | 100000 | 100000 | 100000 | 100000 |
| Protection Grade | IP65 | IP65 | IP65 | IP65 |
